Their aim is to set up secure tunnels across insecure networks. Example: connect two secure networks (peers) over the public internet
IPSEC provides authentication
Any traffic transferred through IPSEC is encrypted
IPSEC is using asymmetric encryption to exchange symmetric keys and use these of ongoing encryption
IPSEC has 2 main phases:

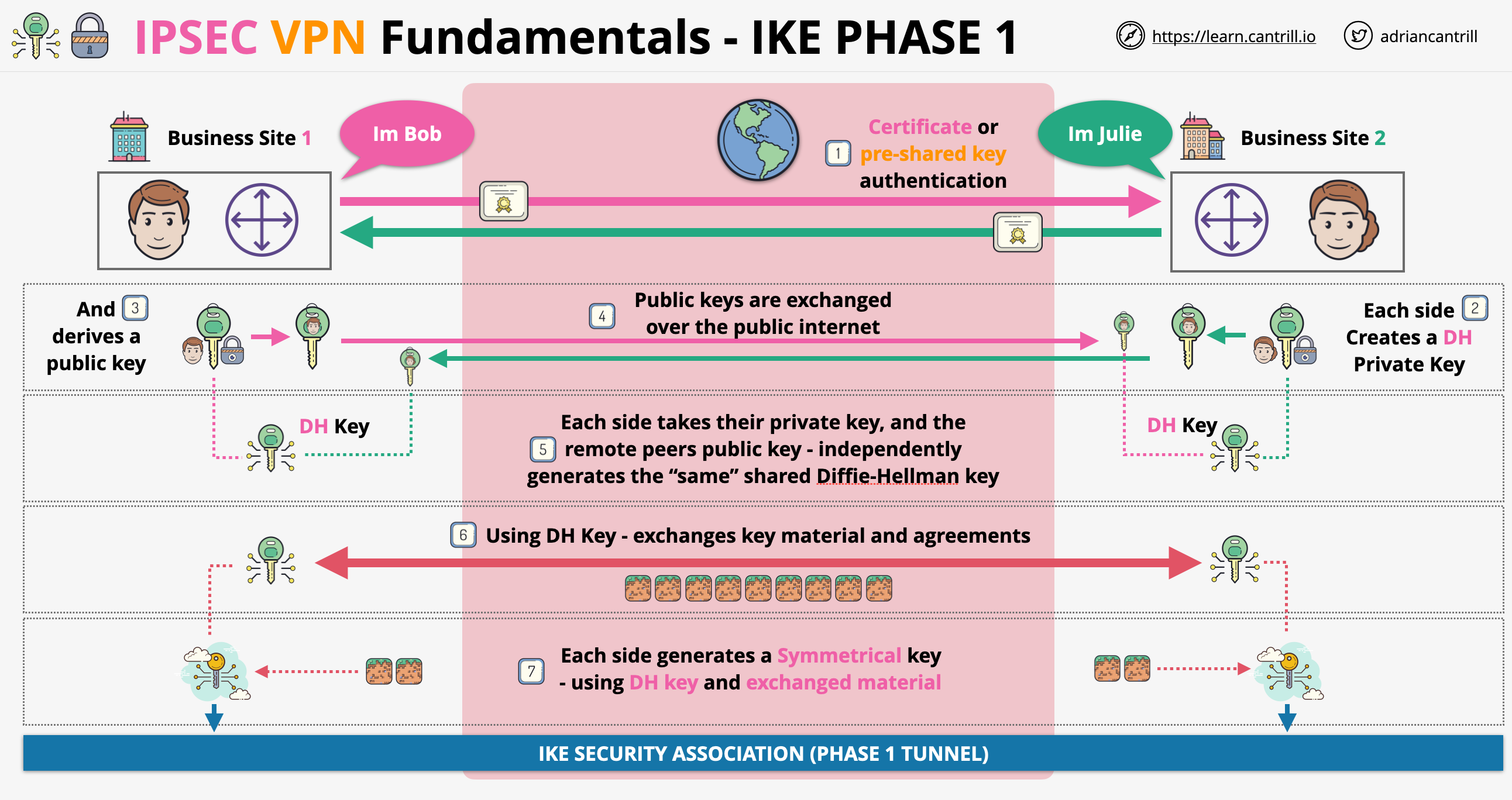

IKE (Internet Key Exchange) Phase 1
It is slow and heavy
It is a protocol of how keys are exchanged
It has 2 versions v1 (older) and v2 (newer)
Uses asymmetric encryption to agree on and create a shared symmetric key
The end of this phase is an IKE SA (security association) phase 1 tunnel

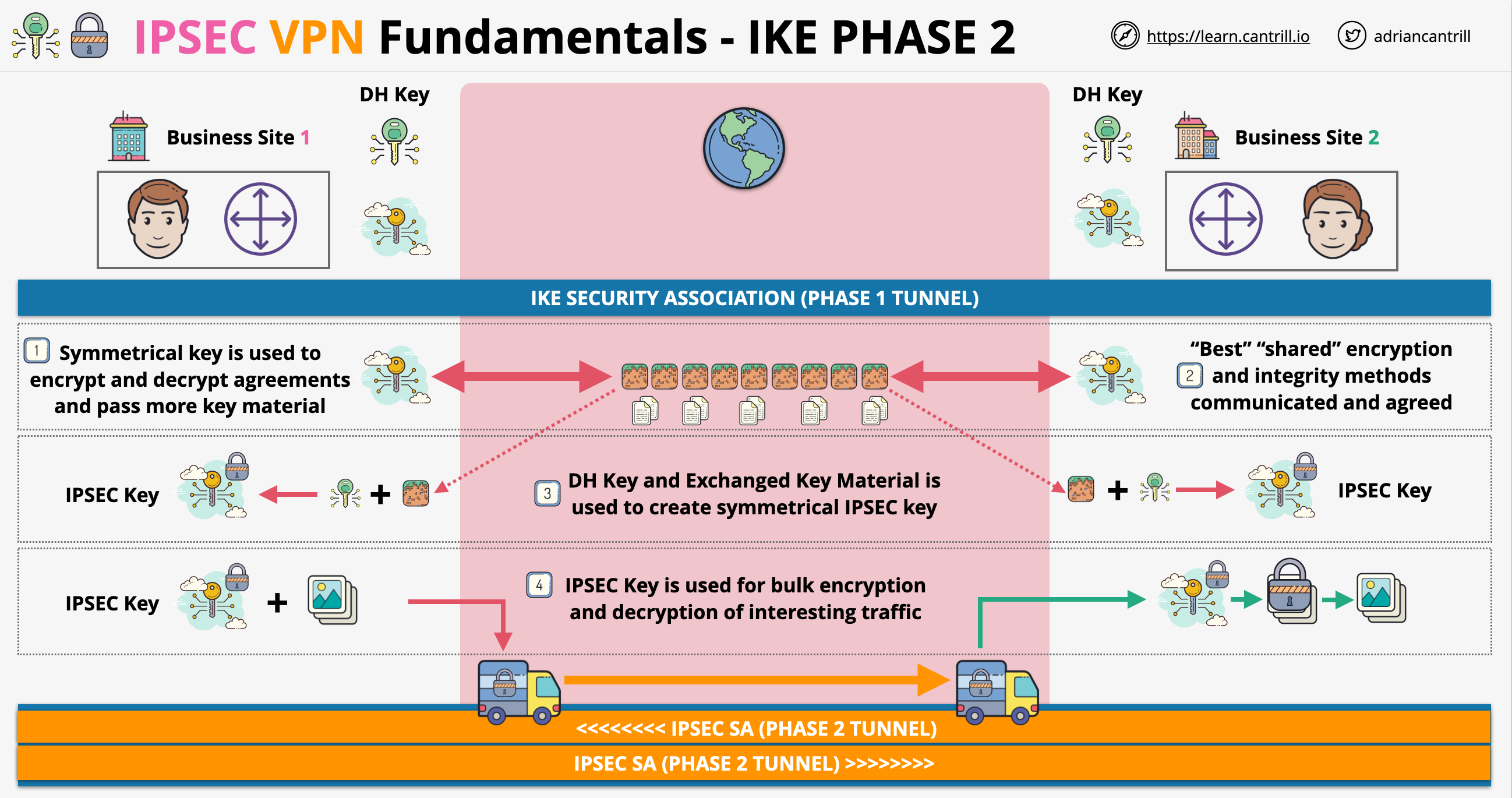

IKE Phase 2
It is faster and more agile
Uses the keys agreed in phase 1
Is concerned with agreeing on encryption method and keys used for bulk data transfer
The end result is an IPSEC SA phase 2 tunnel (runs over phase 1)

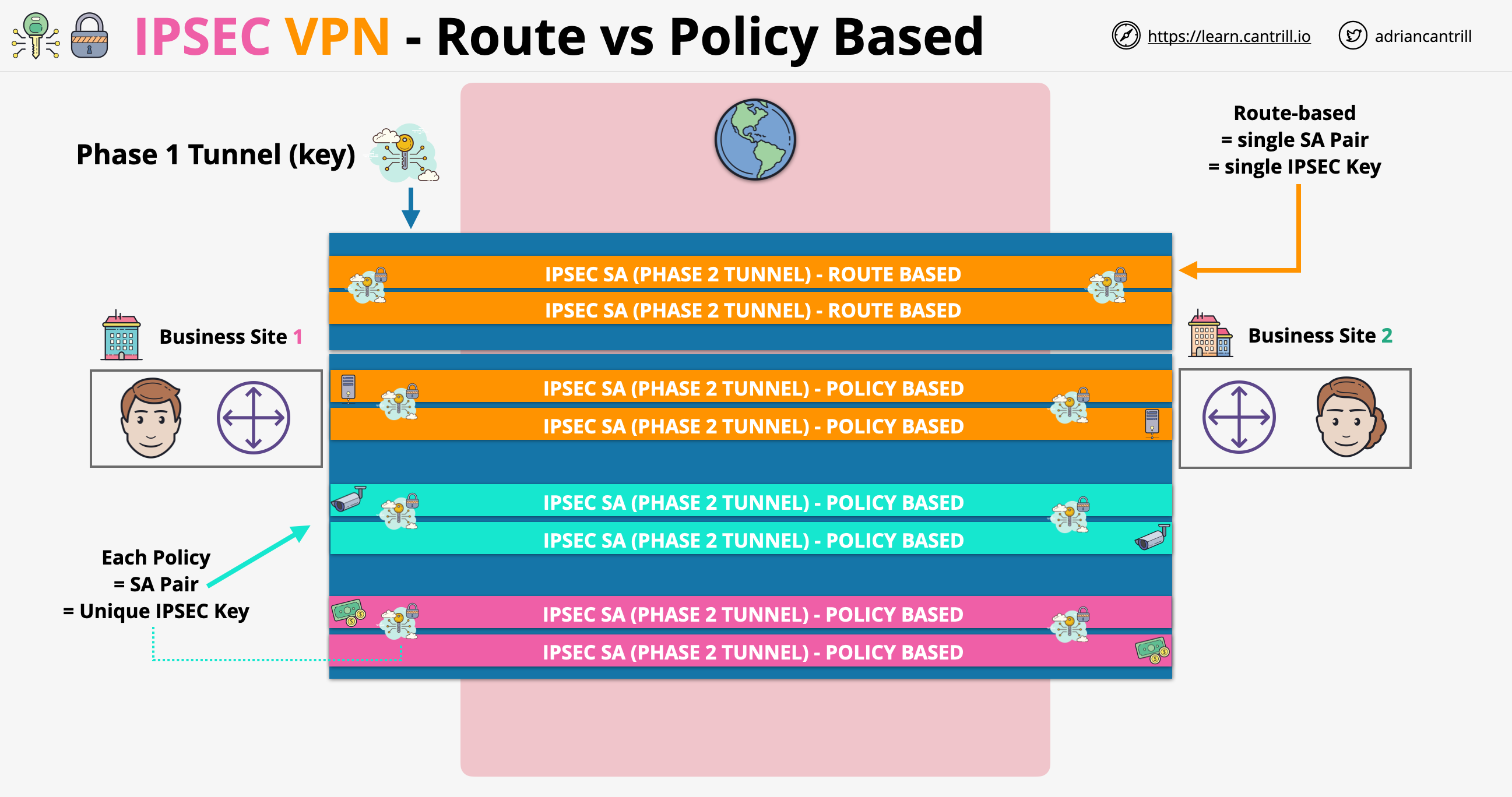

There are two types of VPNs - how they match traffic:
Policy based VPNs: rule sets match traffic, we can have different rules for different types of traffic
Route based VPNs: target matching is done based on prefix. We have a single pair of security associations for each network prefix (less functionality, much simpler to set up)
AWS Site-to-Site VPN
A Site-to-Site VPN is a logical connections between a VPC and an on-premise network running over the public internet. The connection is encrypted using IPSec
Can be fully HA if it is implemented correctly
It is quick to provision, it can be provisioned in less than an hour (contrast to DX)
Components involved in creating a VPN connection:
VPC
Virtual Private Gateway (VGW): it is a gateway object which can be the target of one or more rules in a Route Tables. It can be associated to a single VPC
Customer Gateway (CGW): can refer to 2 different things:
Often is referred to the logical configuration in AWS
Physical on-premises router which the VPN connects to
VPN Connection itself: the connection linking the VGW from the AWS to the CGW
Static vs Dynamic VPN:
Static VPN:
Uses static network configuration: static routes are added to the route tables AWS side, static networks has to be identified on the VPN connection on-premise side.
It is simple, it just uses IPSec, works anywhere, having limitation on terms of load-balancing and multi-connection failover
Dynamic VPN:
Uses BGP protocol, if customer router does not support BGP, we can not use dynamic VPNs
BGP: allows routing on the fly, allows multiple links to be used at once between the same locations. Allows using HA available architectures
Static routes can still be added to the route tables manually
Route propagation: if enabled means that routes are added ro the Route Table automatically
Considerations for VPN:
Speed Limitation for VPN with 2 tunnels: 1.25 Gbps, AWS limitation. Customer router limitation might also apply
Latency considerations: can be inconsistent if the traffic goes through the public internet
Cost: hourly cost for outgoing traffic, on-premises data caps might also apply
Speed of setup: can done very quickly, within hours or less; IPSec is supported by a wide variety of devices, BGP support is less common. VPNs are always quicker to setup then any other private connection technologies
VPNs can be used for Direct Connect backup or they can be used over the Direct Connect for adding a layer of encryption
Accelerated Site-to-Site VPN
Performance enhancement for AWS Site-to-Site VPN that uses the AWS global network, the same network used for Global Accelerator and CloudFront
Using a classic Site-to-Site VPN, the traffic goes through the public internet. In order to avoid this, some companies use a Site-to-Site VPN over Direct Connect. Direct Connect offers more better performance, but at a higher cost. Since DX is not an option for everybody, accelerated Site-to-Site VPN was created to improve performance compared to classic Site-to-Site VPNs

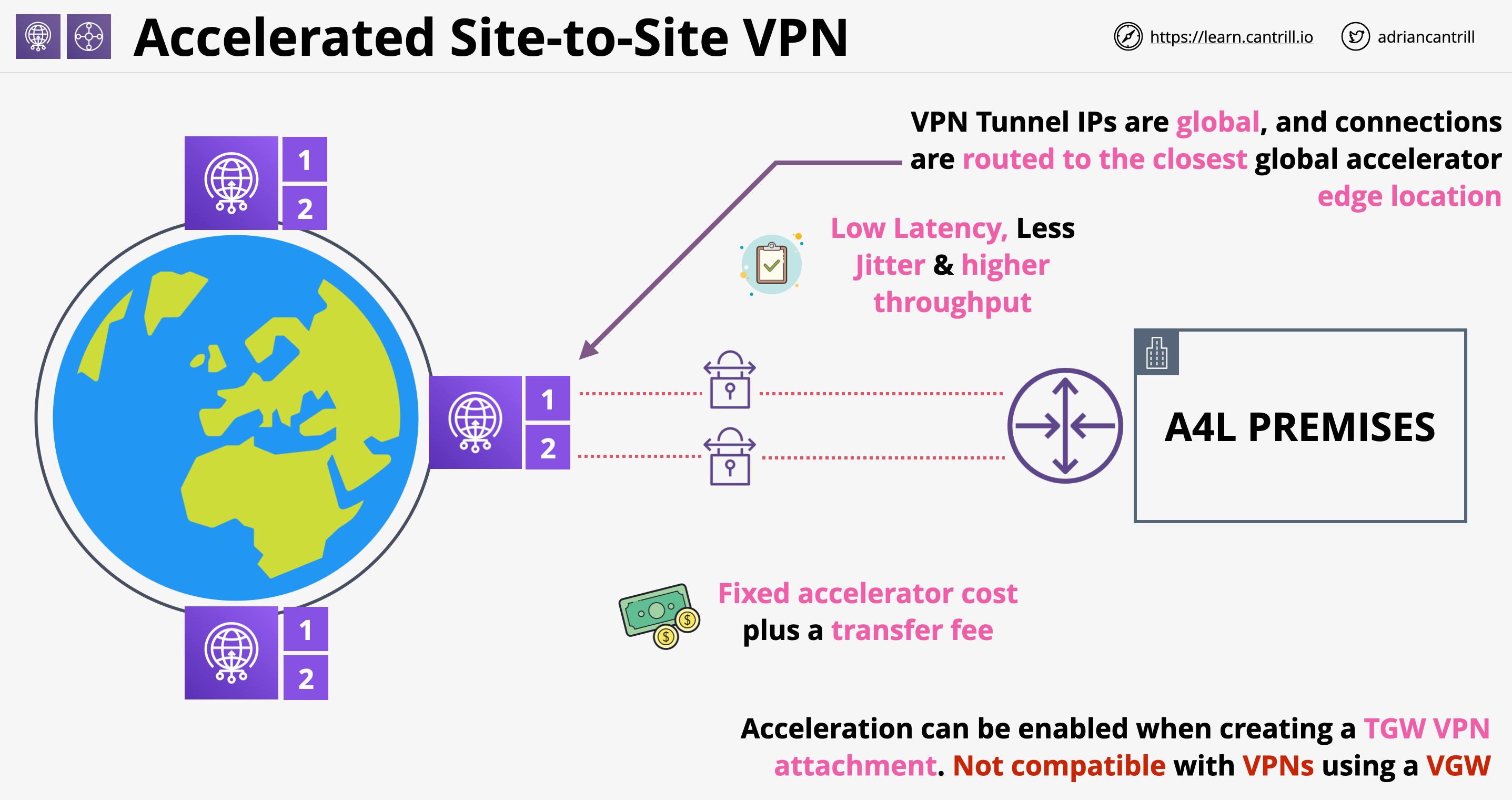

Accelerated Site-to-Site VPN architecture:
Acceleration can be enabled when creating a Transit Gateway attachment only! Not compatible with VPNs using Virtual Private Gateways (VGW)
Accelerated Site-to-Site VPN has a fixed accelerator cost fee and a data transfer fee
Client VPN
Site-to-Site VPN is generally used for one or more business premisses to connect to AWS VPCs. ClientVPN is similar, but instead of sites connecting to AWS, we have individual clients
A ClientVPN is a managed implementation of OpenVPN
Any client device which can use the OpenVPN software is supported
Architecturally we connect to a Client VPN endpoint which can be associated with one VPC and with one ore more Target Networks (high availability)
Client VPN billing is based on network association and hourly fee for usage
Client VPN setup:
We crate a Client VPN Endpoint and associate it with a VPC and one or more subnets from the VPC
This association places an ENI into the subnets associated
We can only pick one subnet per AZ
Client VPN can use many different methods of authentication (certificates, Cognito User Pool, Federated Identities, AWS Directory Service)
We associate a route table to the Client VPN Endpoint in order to set up routing and connectivity (to internet via NAT Gateways, other VPCs with peering, etc.)
This route table is pushed to any client which connects to the Client VPN Endpoint
The default behavior is the Client VPN route table replaces any local routes on the client, meaning the client devices can not access anything locally on their local network without having communication going through the Client VPN Endpoint
We can use split tunnel VPN, meaning that any routes from the Client VPN Endpoint are added to local client route tables. This solves the problem with the default behavior
Split tunnel is not the default behavior. It must be enabled by the user, otherwise all the data (including connection to the public internet) will go via the tunnel
